Deyes High School, Liverpool — 600kW Commercial Solar
Manchester Renewables installed one of our largest commercial systems to date at Deyes High School in Liverpool — a 600kW solar PV array of around 1,800 panels spread across the school's roofs and canopies. The panels sit across the main school building roof, the sports hall roof and the MUGA (multi-use games area) canopies, fitted around the skylights and rooftop plant on the school's green sedum roofs.
The system runs off six 100kW inverters, each clearly labelled PV1 to PV6 and wired back to its corresponding array, so the whole installation is straightforward to monitor and maintain. We installed the system in early 2023, and it has performed reliably ever since.
Just as importantly, we look after it. Every summer holiday our team returns to Deyes High School to service the system, check its performance and head off any issues before they arise — because maintaining and looking after a system is every bit as important as installing it in the first place. A 600kW array of this scale produces a significant share of the school's electricity on-site, cutting energy bills and carbon year after year.
600 kW
System Size
~1,800
Panels
6 × 100 kW
Inverters
Roofs + Canopies
Coverage
2023
Installed
Liverpool
Location
Video Walkthrough

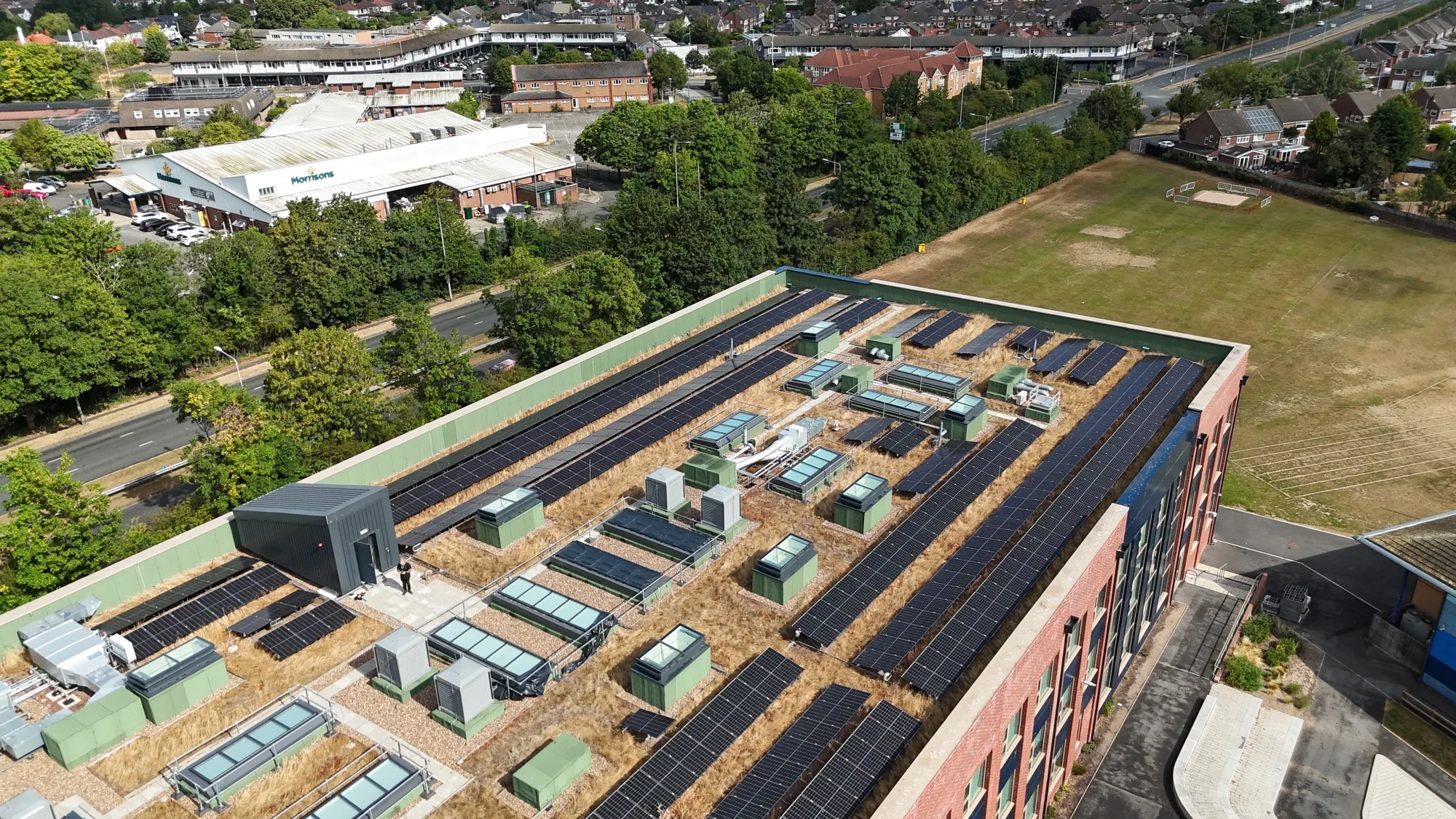

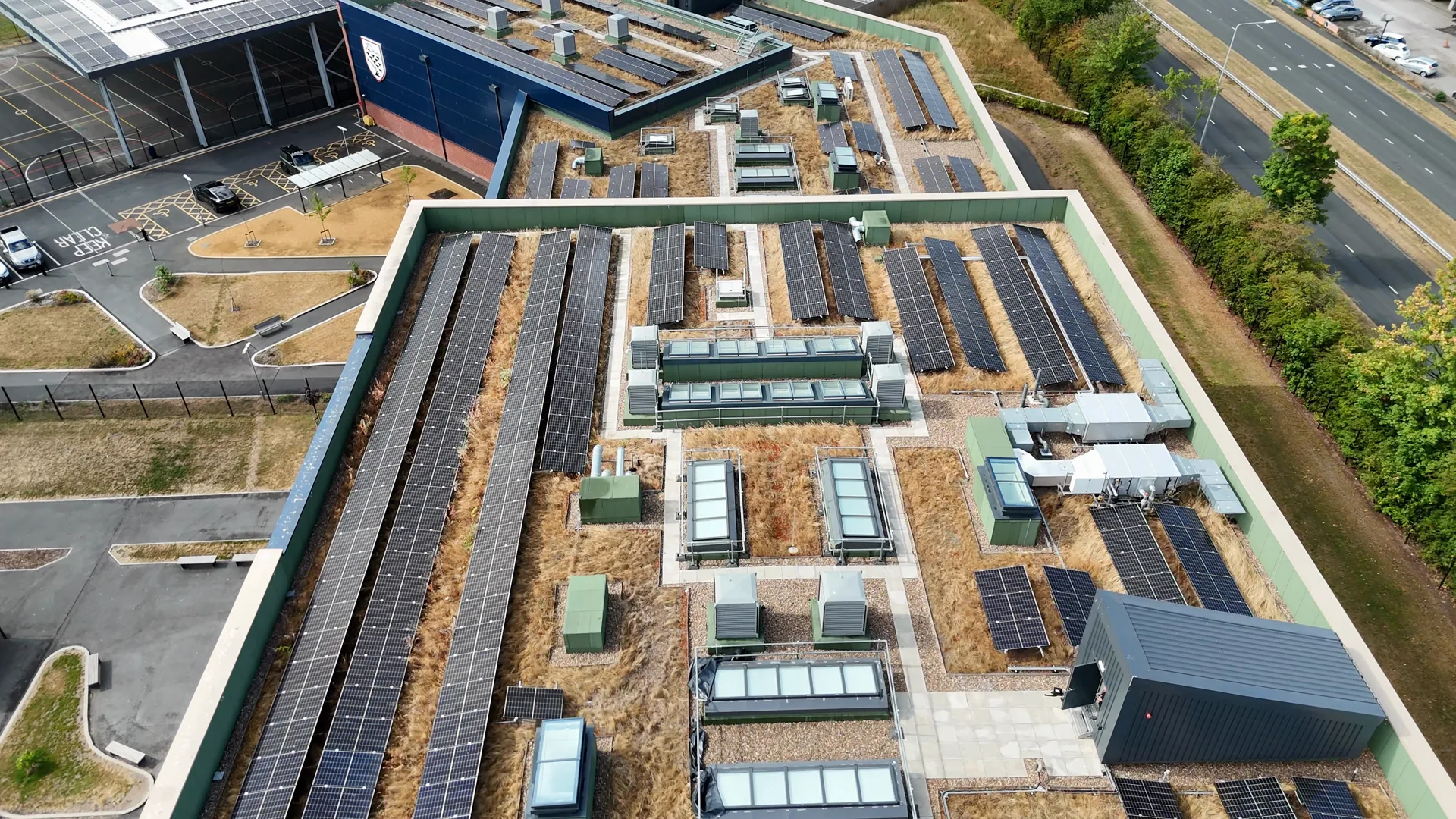

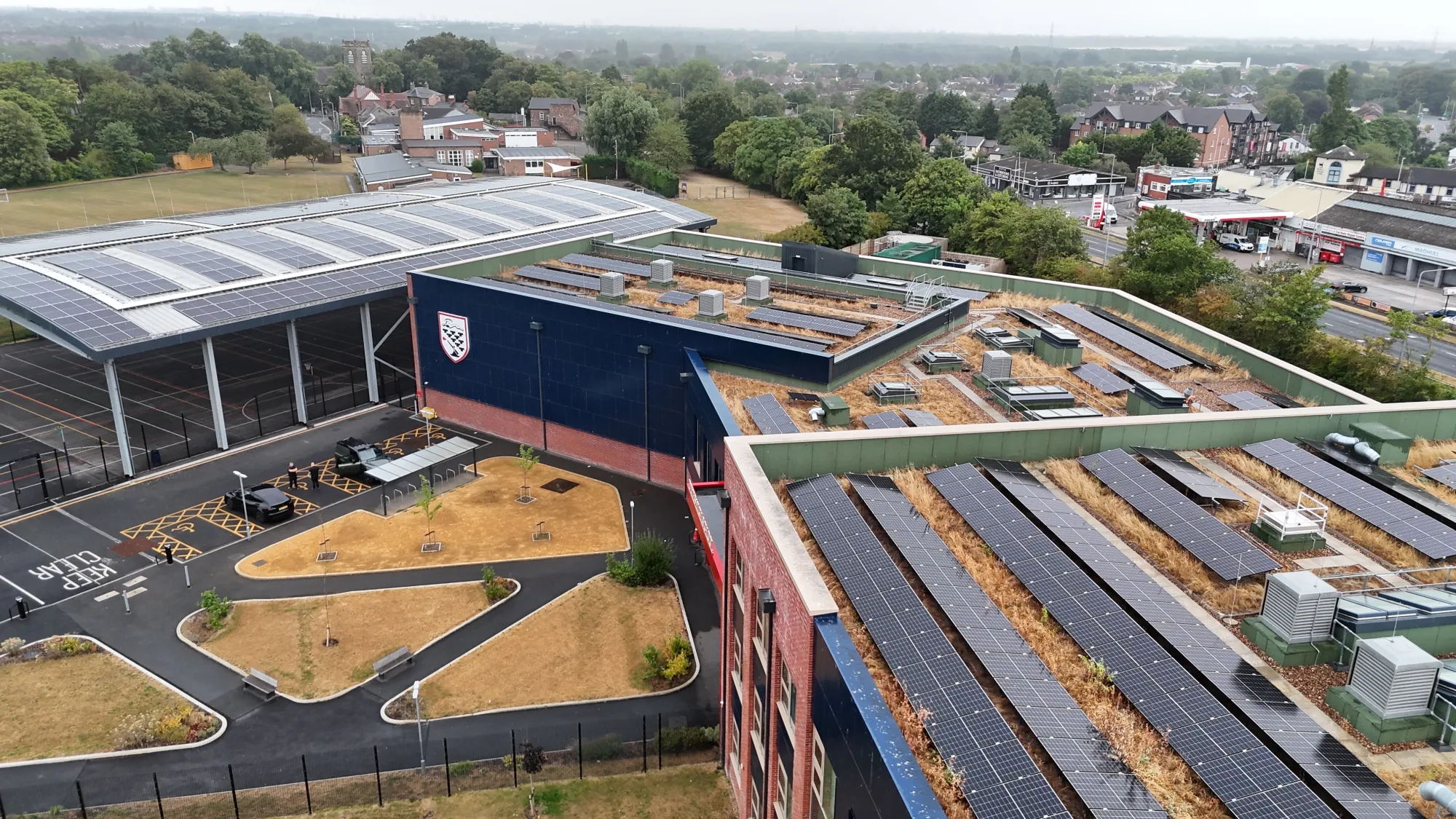

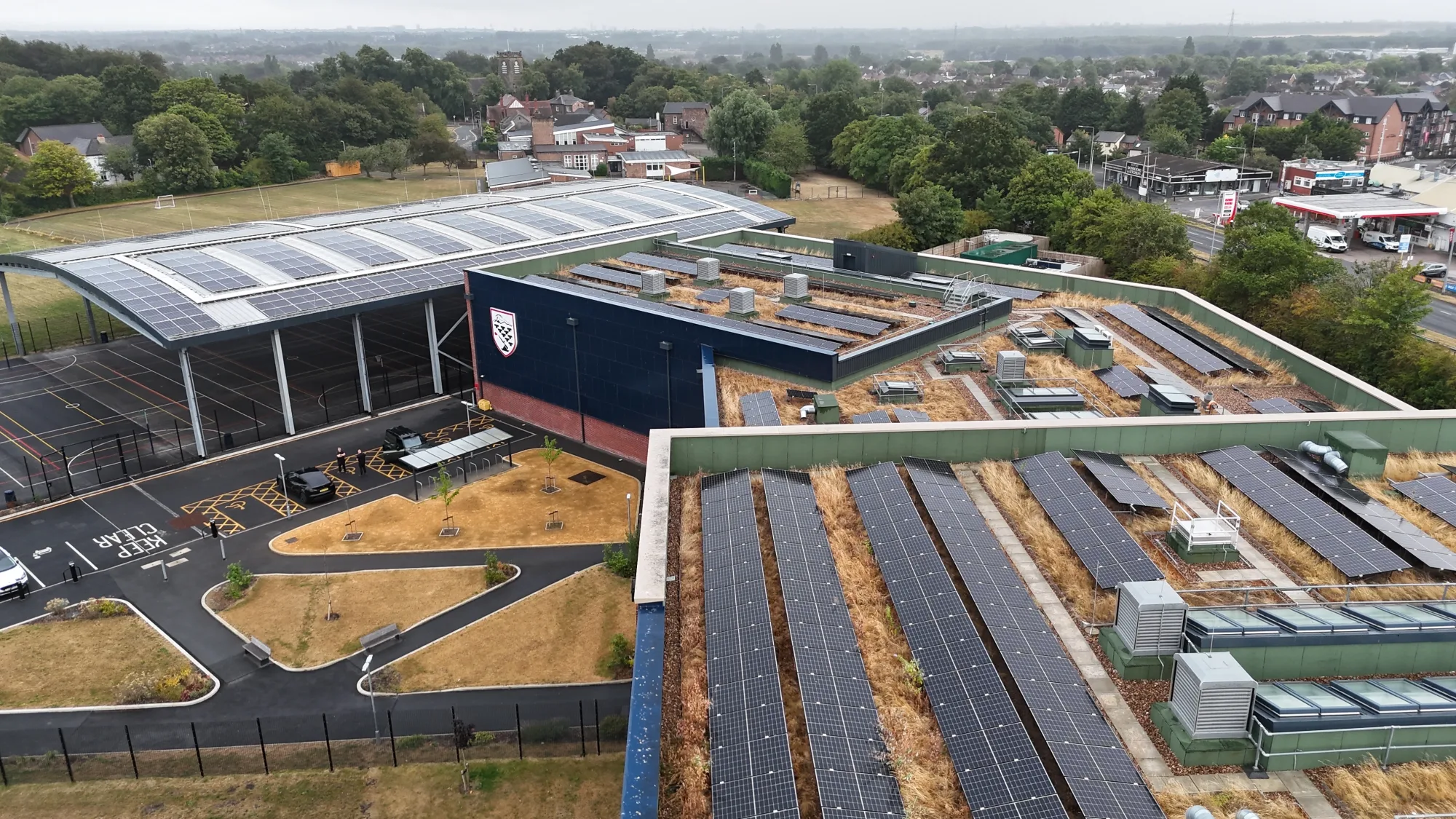

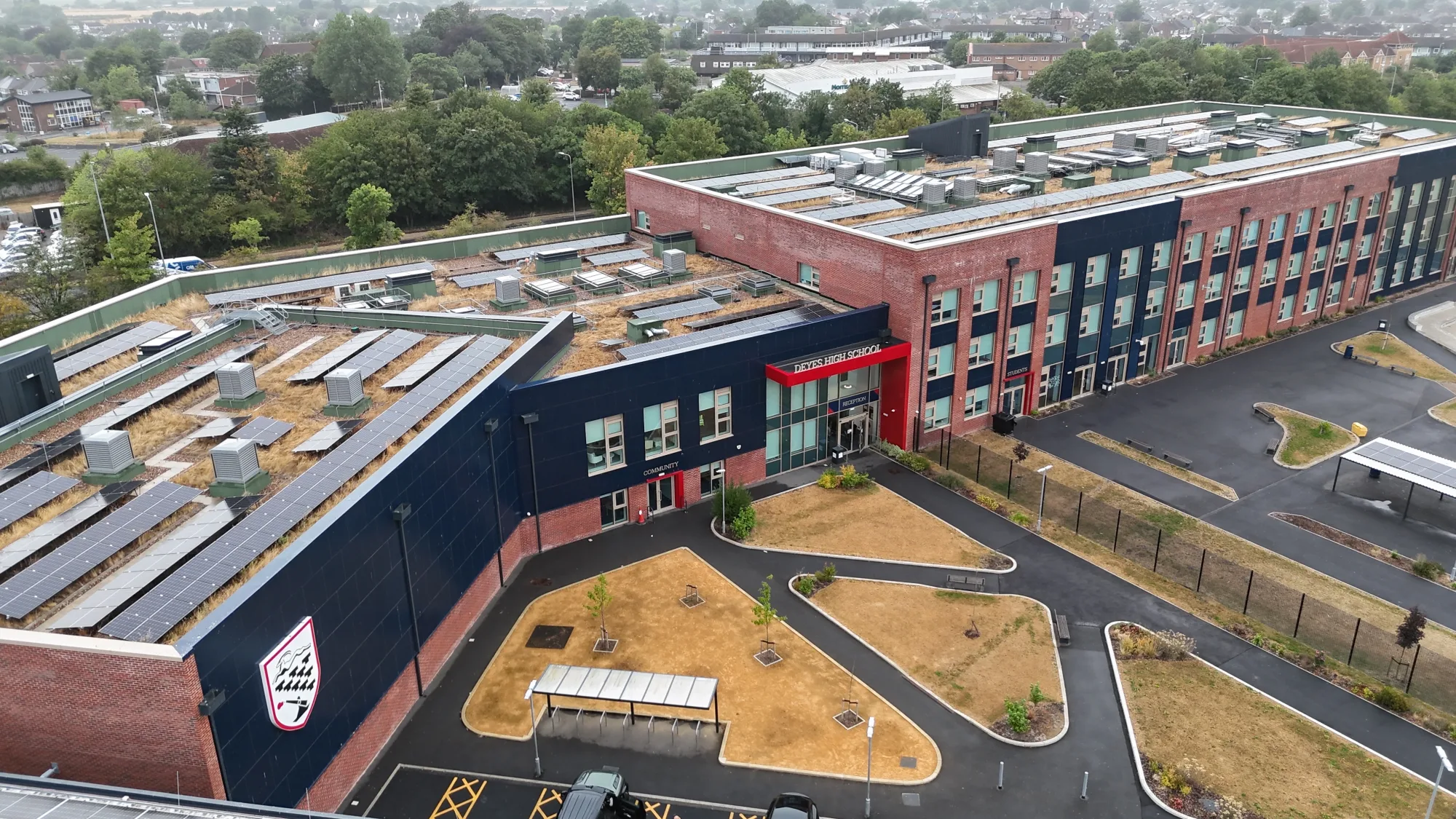

Aerial overview

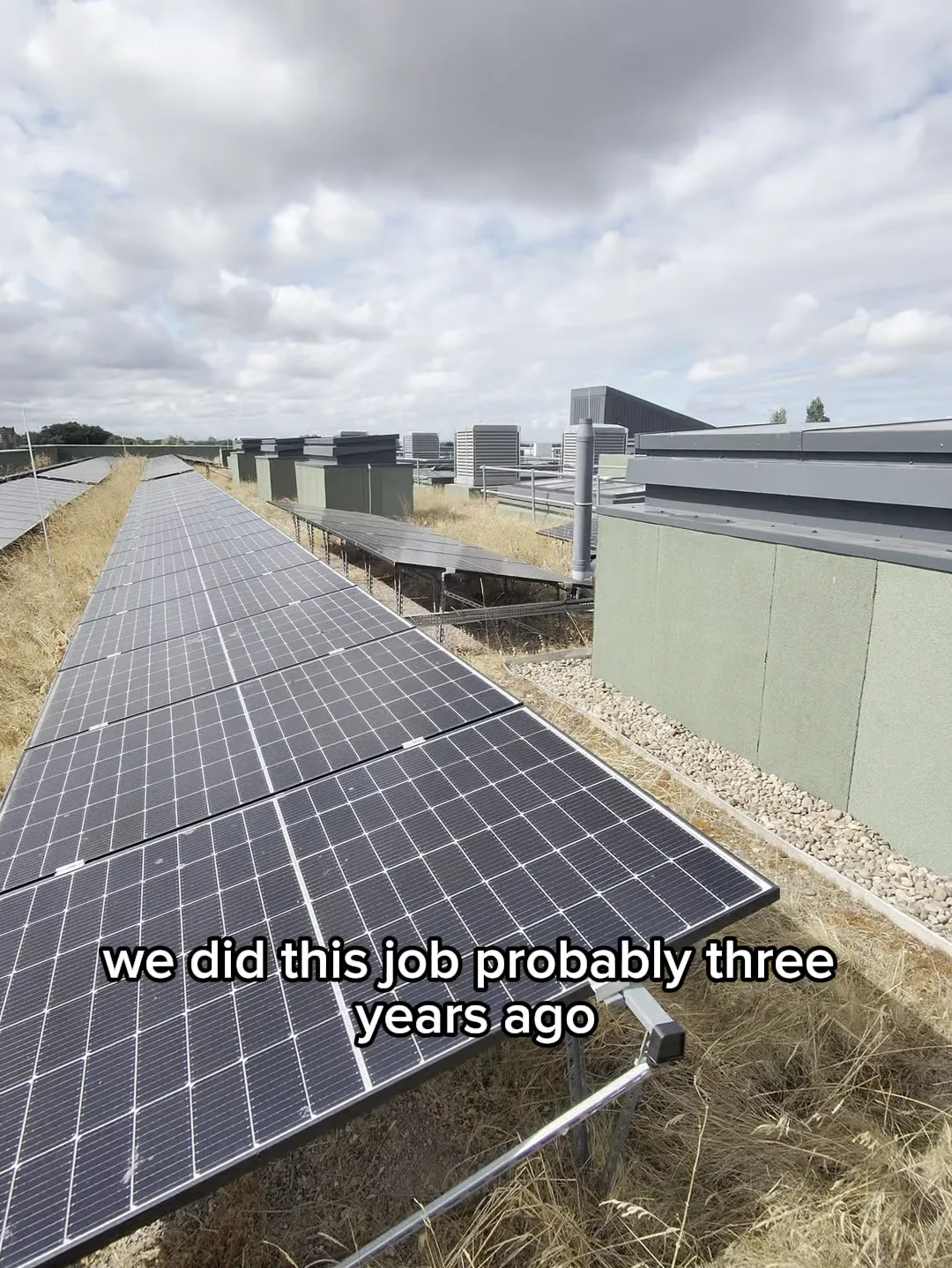

On the roof — an annual maintenance visit
Our team walks the roofs each summer, checking the arrays across the main building, sports hall and canopies.
›Video transcript
I'm on the roof today at Deyes High School. We did this job about three years ago and we're here today doing a bit of maintenance — making sure the system's performing as it should, because the maintenance and the follow-up is just as important as installing the systems in the first place. This is the higher main school building roof, with about 600 panels. This job is about 1,800 panels in total, with two smaller roofs. We did this at the beginning of 2023, so it's been a good few years, and the system's performing great with no issues. We still come out every summer holiday to maintain it, check it and prevent any issues. There's a canopy with about 800 panels, and a smaller roof where the rest of the panels are.

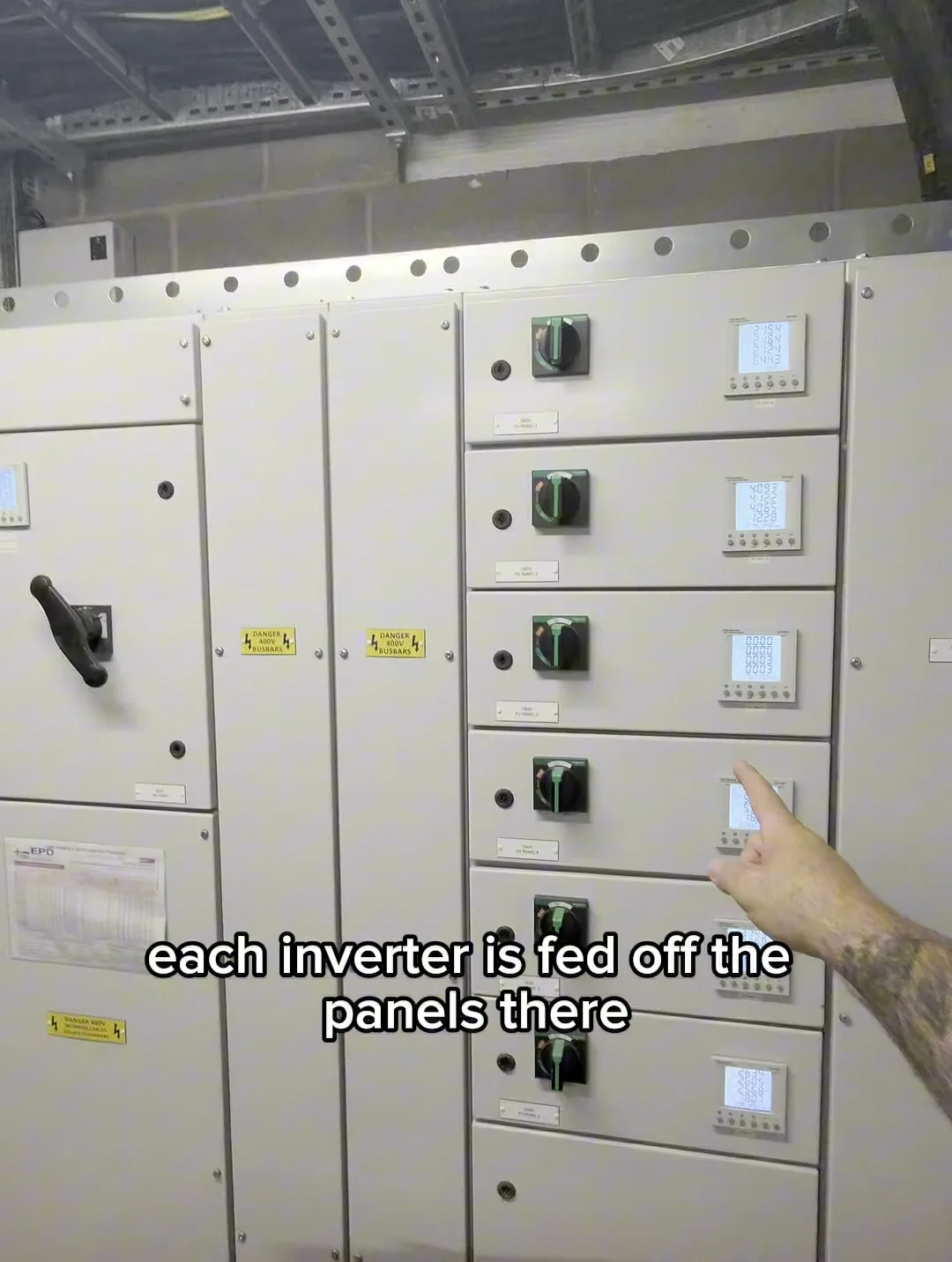

Inside the plant room — six 100kW inverters
Six 100kW inverters, each labelled PV1–PV6 and matched to its array.
›Video transcript
One of our jobs in Liverpool — we did this installation a few years ago now. A 600 kilowatt school with six 100 kilowatt inverters. Everything's labelled up — main roof, sports hall roof, and the canopies (the MUGA). Each inverter is fed off its panels, so you can see six inverters, PV1 to PV6, all labelled so you know where everything is fed from. Here's a quick look inside one of our plant rooms.
Project Gallery
Project Highlights
- 600kW system — around 1,800 solar panels across the school campus
- Six 100kW inverters, labelled PV1–PV6 and matched to their arrays for easy monitoring
- Panels installed across the main school roof, sports hall roof and MUGA canopies
- Fitted around skylights and plant on the school's green sedum roofs, protecting the membrane
- Installed in early 2023 and performing reliably ever since
- Maintained by our team every summer holiday — servicing, checks and preventative care
- MCS certified installation
